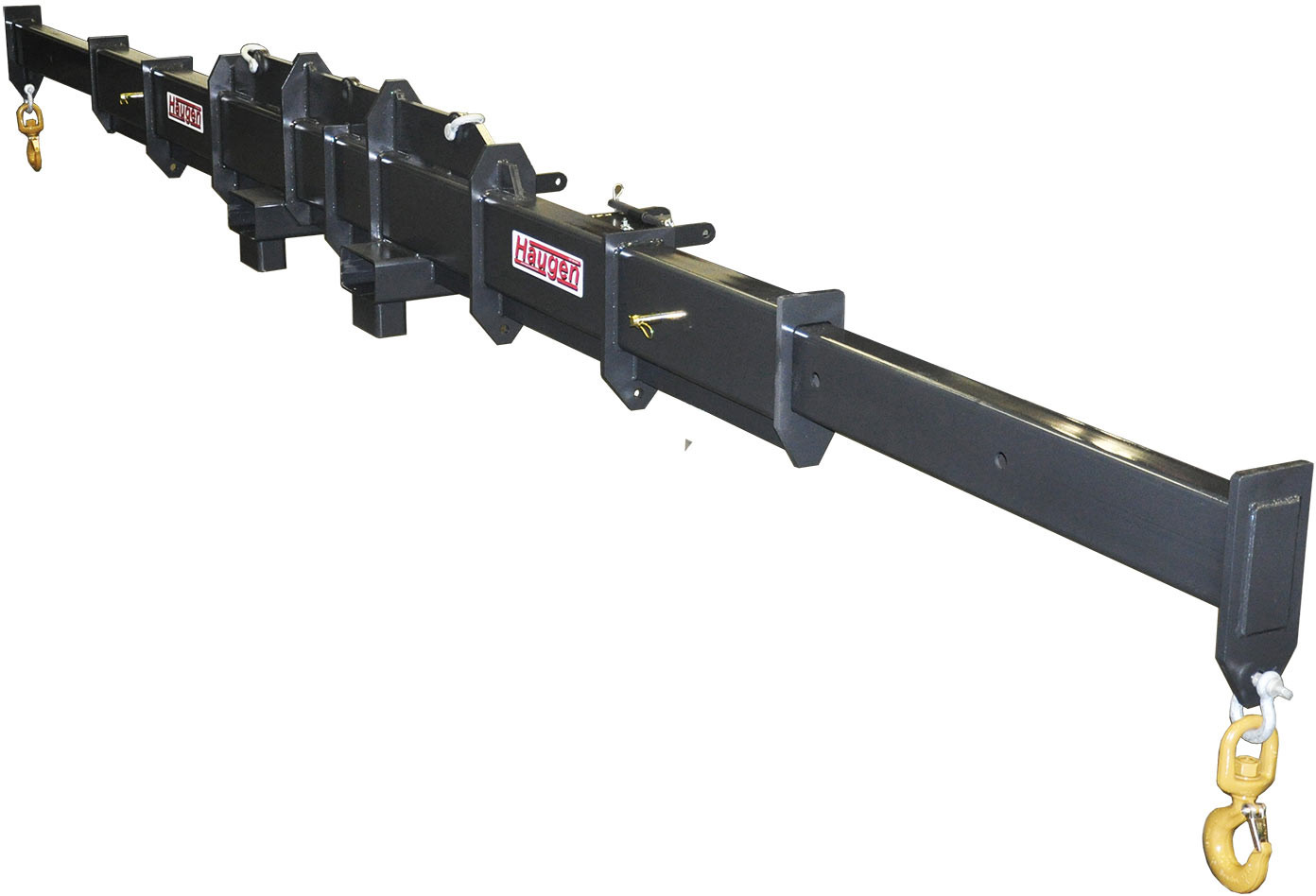

Adjustable Fork Mounted Spreader Bars with Top Hooks | Haugen

adjustable fork mounted spreader bars with top hooks | haugen adjustable fork mounted spreader bars with top hooks | haugen adjustable fork mounted spreader bars with top hooks | haugen
adjustable fork mounted spreader bars with top hooks | haugen
adjustable fork mounted spreader bars with top hooks | haugen
adjustable fork mounted spreader bars with top hooks | haugen
Product ID:
HGN-MASPX
Availability:
limited quantity available

LIMITED TIME FREE SHIPPING!

5% discount applied.
Sale ends October 31, 2021

$4,870.00$4,626.50
Choose Model
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
Business financing:

Business Financing Available

DETAILS

Engineered Certified Fork Mounted Spreader Bars with Top Hooks come complete with load chart. This attachment is available in 3 different models. See specifications and model chart below.

MODEL SPREAD LIFTING CAPACITY WEIGHT
65.375” Spread
Position to
145.88”
Center Position - Single Point Load 10,000 lbs 720 LBS
Point Loads @ 65.375” spread position 5,000 x 2 = 10,000 lbs
Point Loads @ 97.88” spread position 4,000 x 2 = 8,000 lbs
Point Loads @ 121.88” spread position 3,500 x 2 = 7,000 lbs
Point Loads @ 145.88” spread position 3,000 x 2 = 6,000 lbs
MODEL SPREAD LIFTING CAPACITY WEIGHT
65.375” Spread
Position to
180.00"
Center Position - Single Point Load 10,000 lbs 825 LBS
Point Loads @ 65.375” spread position 5,000 x 2 = 10,000 lbs
Point Loads @ 89.00” spread position 5,000 x 2 = 10,000 lbs
Point Loads @ 120.00” spread p 4,000 x 2 = 8,000 lbs
Point Loads @ 150.00” spread position 3,500 x 2 = 7,000 lbs
Point Loads @ 180.00” spread position 3,000 x 2 = 6,000 lbs
MODEL SPREAD LIFTING CAPACITY WEIGHT
65.375” Spread
Position to
240.00”
Center Position - Single Point Load 10,000 lbs 995 LBS
Point Loads @ 65.375” spread position 5,000 x 2 = 10,000 lbs
Point Loads @110.00” spread position 4,000 x 2 = 8,000 lbs
Point Loads @ 162.00” spread position 3,500 x 2 = 7,000 lbs
Point Loads @ 201.00” spread position 3,000 x 2 = 6,000 lbs
Point Loads @ 240.00” spread position 2,250 x 2 = 4,500 lbs

features

  • Engineered Certified
  • Comes with load chart
  • The fork pockets hold the Spreader Bar at 24” on center
  • Fork Pockets fit tines up to 3.50” thick x 7.50” wide.
  • Secures to your Fork Tines with a pin.
  • Comes standard with Two 5 ton swivel hooks and two schackles for the top Plate
  • Available sizes, 8’ to 12’ , 10’ to 15’, and 13’ to 20’
  • Made in the USA
  • 1 year warranty
