Auger - Extreme Duty | Blue Diamond

auger - extreme duty | blue diamond auger - extreme duty | blue diamond auger - extreme duty | blue diamond auger - extreme duty | blue diamond
auger - extreme duty | blue diamond
auger - extreme duty | blue diamond
auger - extreme duty | blue diamond
auger - extreme duty | blue diamond
Product ID:
BD-ED-AGR
Availability:
limited quantity available

LIMITED TIME FREE SHIPPING!

5% discount applied.
Sale ends September 30, 2022

$4,009.00$3,808.55
Choose Model

Choose model that closest matches your machine's GPM

Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
Business financing:

Business Financing Available

DETAILS

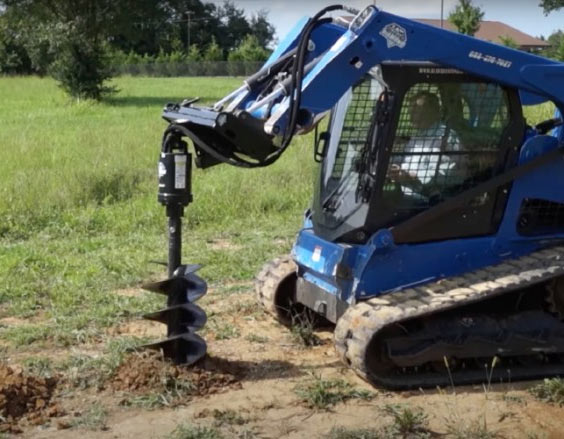

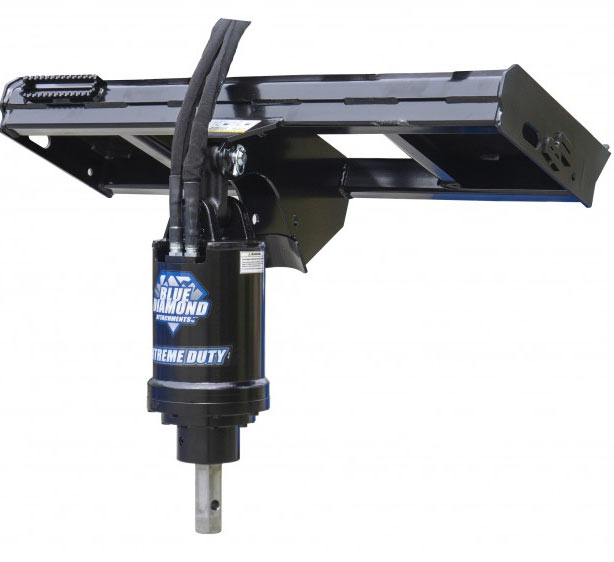

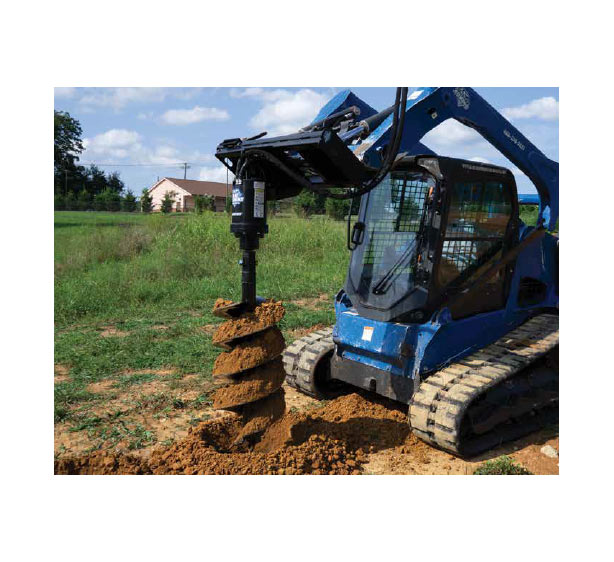

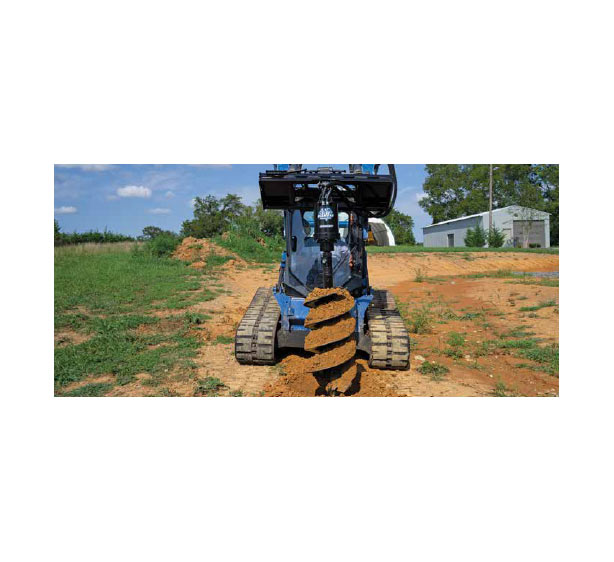

The all new Blue Diamond Series 2 Extreme Duty Auger offers the ultimate in performance, quality, and cost effectiveness.  Designed with high-grade materials and innovation, this design allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. The Blue Diamond® Extreme Duty Auger Series 2 drives are perfect for drilling and augering in most ground conditions.

MODEL EX1 EX2 EX3 EX4 EX4F
TORQUE FT-LBS @ 3,000 PSI 1,467 2,254 2,829 3,275 3,583
MAX TORQUE FT-LBS @ 3,500 PSI 1,712 2,630 3,300 3,821 4,180
RECOMMENDED FLOW (GPM) 6–16 10–26 10-30 10-30 10-36
PEAK EFFICIENCY (GPM) 8–11 12-16 17-20 19-23 21-26
MOTOR TYPE Eaton
MAX PRESSURE — DO NOT EXCEED 3,500 psi @ 16 gpm 3,500 psi @ 27 gpm
MAX FLOW — DO NOT EXCEED 30 gpm @ 1,800 psi 42 gpm @ 3,100 psi
MAX HP 33 55
PRESSURE RELIEF VALVE N/A Included
STANDARD OUTPUT SHAFT 2" Hex
MAX DRILLING DIAMETER CLAY/SHALE 12" 24"
MAX DRILLING DIAMETER EARTH 24" 30" 36"
WEIGHT (LBS) 101 123 125 180 180
OVERALL LENGTH (IN) 24.5" 25.9" 29"
DIAMETER (IN) 7.4" 9.4"

features

  • Compact high torque manufactured gearbox
  • Eaton motor with integrated PRV eliminating the need for bulky valve blocks and reducing potential leak points
  • 2 piece shaft design ensuring maximum side load ratings
  • 5-yr gearbox warranty, 3-yr motor warranty, and lifetime shaft pull-out warranty
