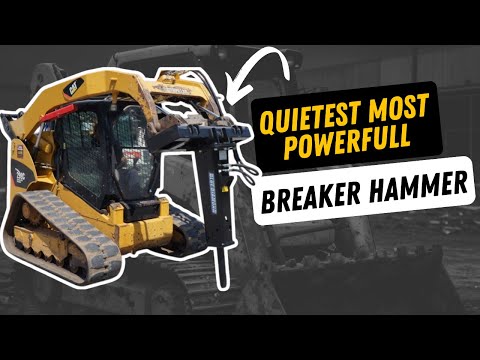

Breaker Hammers - Excavator | Blue Diamond

breaker hammers - excavator | blue diamond breaker hammers - excavator | blue diamond breaker hammers - excavator | blue diamond breaker hammers - excavator | blue diamond breaker hammers - excavator | blue diamond
breaker hammers - excavator | blue diamond
breaker hammers - excavator | blue diamond
breaker hammers - excavator | blue diamond
breaker hammers - excavator | blue diamond
breaker hammers - excavator | blue diamond
Product ID:
BD-EX-BRKR-HMR
Availability:
limited quantity available

LIMITED TIME FREE SHIPPING!

10% discount applied.
Sale ends December 15, 2022

$5,338.00$4,804.20
Choose Model

This price includes hoses and couplers (A $450 Value!)

Choose Excavator Mount

At checkout, you will be asked to provide the make and model of your machine.

ENDS DEC 15, 2022 - Choose 1 Free Tool - A $370.46 to $1,041.77 Value
ENDS DEC 15, 2022 - Free Case Of Chisel/Tool Paste (QTY 12 - 14 oz. tubes) - A $154.32 Value
Questions?Call 866-315-3134 - Se Hable Espanol
Consumer financing:
Business financing:

Business Financing Available

DETAILS

FREE CHISEL TOOL OR MOIL POINT TOOL - A $370.46 to $1,041.77 VALUE
Choose your free tool. Choose between the moil point or chisel point tool. Values vary depending on breaker size.



FREE CASE OF CHISEL/TOOL PASTE - A $154.32 VALUE
QTY 12: 14 oz. Tubes of hydraulic breaker chisel/tool paste. It is recommended to paste the breaker tool before each use.



***Please note: Excavator mount pins not included. At checkout, you will be asked to provide the make and model of your machine.

This Hydraulic Breaker Hammer will outlast, out perform and provide the highest return of any breaker period!

A hydraulic breaker hammer attachment at times is the most important tool on the job. An entire job can be relying on this attachment. You need the best most affordable hammer to limit or eliminate any downtime. Well look no further. After 5 years of research and development, we have the most technological, simplistic, reliable, and ease of setup hydraulic breaker hammer on the market today.

MODEL WORKING
PRESSURE
MAX
GPM
FREQUENCY
(BPM)
WEIGHT TOOL
DIAMETER
ENERGY
CLASS
CARRIER
WEIGHT
(PSI) BACK
PRESSURE
HB50 1,750 7 1,200 132 LBS 1.5 90 1,500-2,650
LBS
290-360
HB95 1,750 11 1,200 220 LBS 1.8 200 2,650-4,000
LBS
290-360
HB165 1,750 13 1,200 370 LBS 2.2 300 4,000-6,600
LBS
290-360
HB210 1,750 16 1,100 463 LBS 2.5 400 6,100-9,900
LBS
290-360
HB300 1,750 21.2 1,100 661 LBS 2.9 550 8,800-15,500 LBS 290-360
HB400 1,750 29.2 900 882 LBS 3.1 1,000 13,500-20,900 LBS 363
HB530 1,750 32 900 1,169 LBS 3.3 1,200 17,650-25,350 LBS 363
HB950 1,950 34 900 2,161 LBS 4 2,000 22,000-33,000 LBS 363
HB1400 2,050 37 600-800 2,976 LBS 4.6 3,000 30,000-50,000 LBS 145
HB1800 2,050 53 460-630 3,968 LBS 5.4 4,000 48,000-70,000 LBS 145
HB2500 2,200 61 460-630 5,291 LBS 6 5,000 60,000-80,000 LBS 145
HB3000 2,350 75 380-500 6,614 LBS 6.5 7,000 70,000-110,000 LBS 145

features

  • 3 year warranty
  • Mono-block design / no tie rods
  • Anti-blank firing system hydraulic brake
  • Operated with oil actuation (newest technology)
    - No regassing needed / not nitrogen fed
    - less maintanance needed
  • Only 2 internal moving parts
  • 2 speed control / variable stroke
  • Quiet Operation
  • Self-regulating
  • Body bushings around piston

FREQUENTLY ASKED QUESTIONS

  1. What does Monoblock mean?

    ‘Monoblock’ refers to the housing in which the piston operates. The Blue Diamond Breaker housing is one piece, so it doesn’t use 4 tie-rods to hold it together like the majority of other brands. Tie-rods are notorious for stretching and breaking, causing mass destruction to the tool.
  2. Do I really not need to adjust the flow and pressure of my machine?

    Yes, as long as you are operating a breaker on the right size host machine. Industry-leading technology components will control incoming and outgoing flows to specified amounts.
  3. What are the sleeves inside the Monoblock for?

    The sleeves are there to protect the Monoblock in the event of piston damage, and if damaged, they are cheap and simple to replace. The very few brands that use Monoblock technology now do not use sleeves, so a repair could cost almost as much as the breaker.
  4. Do I have to re-gas when servicing?

    No, the accumulator can be removed as an assembly and not be disturbed; the energy recovery system keeps it from needing to be topped up!
  5. In order to have my 3-year warranty honored, do I have to have it serviced by a dealer regularly?

    No, unless it develops an oil leak, do not take it apart at all, just grease it and use it!
