Heavy Duty Low Profile Extended Lip Bucket | Berlon
BRLN-BCKT-HDELLP
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends May 31, 2025
DETAILS

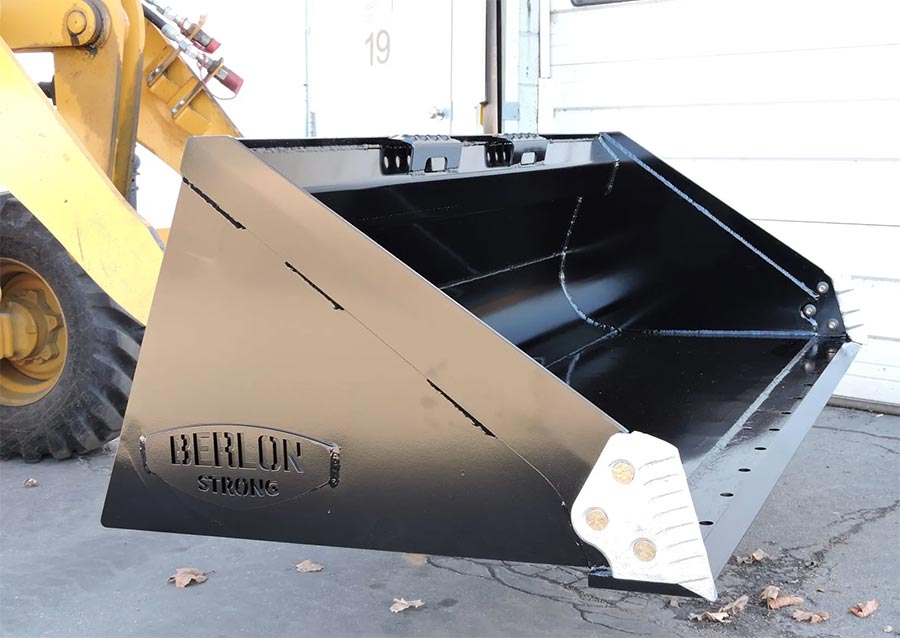

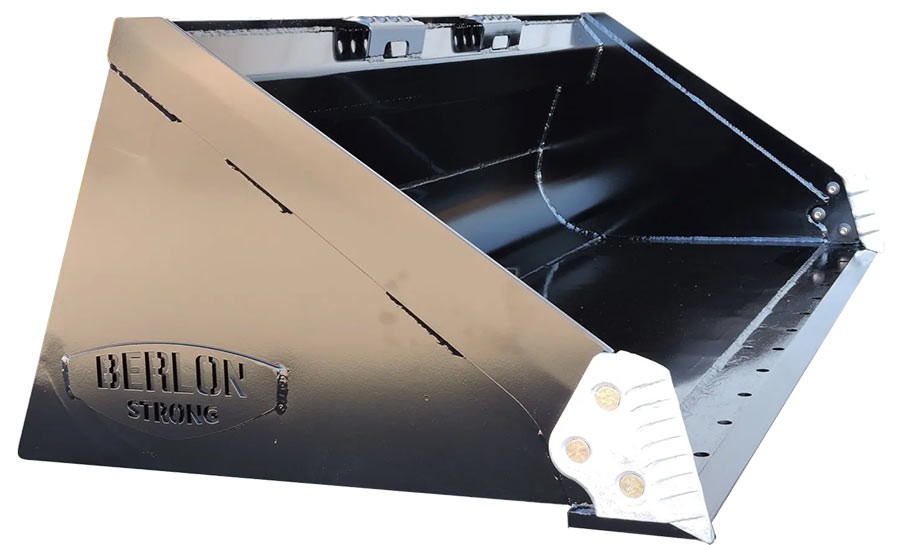

The Heavy Duty Extended Lip low profile skid steer bucket is perfect for construction sites where larger loaders are often used. This bucket comes in 4 different widths 72", 78", 84" and 90". The body of the the bucket is constructed with 1/4 inch steel with a heavy duty dimple plate on the floor of the bucket. The dimple plate makes the floor of the bucket 5 times stronger than wear bars alone. The body is also fully welded and double reinforced in critical areas for the heavy usage. Ideal for machines 75 hp and greater.
| MODEL | INSIDE DIMENSION |
OUTSIDE DIMENSION |
HEIGHT | DEPTH | ANGLE | WEIGHT | HEAPED CAPACITY |
|---|---|---|---|---|---|---|---|
| 72" Bucket | 72" | 73.5" | 23.5" | 36" | 70 Degree |
823 LBS | 23.5 cu/ft |
| 78" Bucket | 78 | 79.5" | 23.5" | 36" | 70 Degree |
891 LBS | 25.5 cu/ft |
| 84" Bucket | 84 | 85.5" | 23.5" | 36" | 70 Degree |
959 LBS | 27.4 cu/ft |
| 90" Bucket | 90 | 91.5" | 23.5" | 36" | 70 Degree |
1027 LBS | 29.4 cu/ft |
features
- Side Cutters
- Fully welded body
- Body constructed of 1/4 inch American steel
- 1/4" x 6” weld-on cutting edge with holes
- Heavy Duty dimple plate making the floor 5 times stronger than wear bars alone
- 3/8” x 3” beveled side edges
- Double reinforcement in critical areas
- Radius kick-out plate
- Heavy Duty Universal mounting plate
- Warranty: 1 year
- Made in the USA
